| Brand Name: | ZHONGCHI MACHINERY |
| Model Number: | HDZC2812S |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |

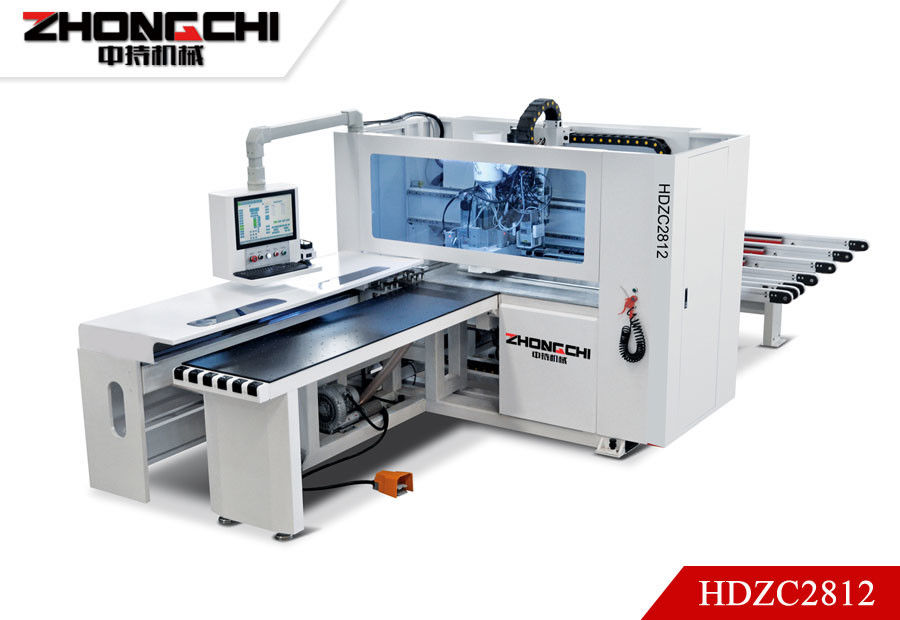

HDZC2812S CNC six-sided drill
The system is intelligent and efficient by scanning code to identify processing information
The equipment adopts double clamp feeding, the maximum speed of material grabbing can reach 130m / min, and the clamping position can be automatically adjusted according to the length of the plate. Through the matching of the drill bag and the spindle, it can realize the diversified processing of six side drilling, six side slotting, side pull lamp slot, six side lamino slot invisible parts, processing through holes, milling special-shaped parts, etc.
With rotary line processing, improve work efficiency
Equipped with strong servo drive motor, 200-300 sheets a day, greatly improving the drilling speed
Full automatic CNC system, through the power conveyor automatically transmitted to the six side drill, can automatically position, automatic processing, automatic discharge, just a worker or through the mechanical arm sorting can be
Equipped with air floating table and air floating pressure plate, air layer is formed on the upper and lower surface of the plate during processing, which improves the conveying efficiency of the plate and avoids scratching the plate; The pressure plate drilling is completed at the same time to ensure the drilling accuracy and efficiency
● Artifacts six sides drilling
● Front and back card slot
● Automatic scan code docking pipeline
● Compatible with XML, MPR, etc
● Teardown software seamless docking
● Scan bar code without programming
| Model | HDZC2812S |
| Control system | BAOYUAN MW2560PC+3D CAM |
| Drive system | Servo driver |
| Collect type | ER25 |
| Spindle speed | 18000r/min |
| Panel length | 200~2800mm |
| Panel width | 50~1220mm |
| Panel thickness | 10~60mm |
| Empty moving speed(X/U/Y/Z) | 120/120/75/30m/min |
| Total power | 25KW |
| Spindle power | 3.5KW×2 |
| Spindle speed | 18000r/min |
| UP Horizontal drill | X:2×4 Y:2×2 |
| UP Vertical drill | 12 |
| Bottom Vertical drill | 9 |
| Drilling speed | 4000r/min |
| Working pressure: | 0.6-0.8MPA |
| Voltage | 380V/50HZ 3phase |
| Dimension(L*W*H) | 5800*2700*2400mm |
| Weight (KG): | 2000kgs |
| Fixed position: | Auto |
| Side leaning: | Auto |
| Working table | Air Floating table |
Packing and Shipping
Certificate and Workshop
Payment Options
|
|
| Brand Name: | ZHONGCHI MACHINERY |
| Model Number: | HDZC2812S |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |
HDZC2812S CNC six-sided drill
The system is intelligent and efficient by scanning code to identify processing information
The equipment adopts double clamp feeding, the maximum speed of material grabbing can reach 130m / min, and the clamping position can be automatically adjusted according to the length of the plate. Through the matching of the drill bag and the spindle, it can realize the diversified processing of six side drilling, six side slotting, side pull lamp slot, six side lamino slot invisible parts, processing through holes, milling special-shaped parts, etc.
With rotary line processing, improve work efficiency
Equipped with strong servo drive motor, 200-300 sheets a day, greatly improving the drilling speed
Full automatic CNC system, through the power conveyor automatically transmitted to the six side drill, can automatically position, automatic processing, automatic discharge, just a worker or through the mechanical arm sorting can be
Equipped with air floating table and air floating pressure plate, air layer is formed on the upper and lower surface of the plate during processing, which improves the conveying efficiency of the plate and avoids scratching the plate; The pressure plate drilling is completed at the same time to ensure the drilling accuracy and efficiency
● Artifacts six sides drilling
● Front and back card slot
● Automatic scan code docking pipeline
● Compatible with XML, MPR, etc
● Teardown software seamless docking
● Scan bar code without programming
| Model | HDZC2812S |
| Control system | BAOYUAN MW2560PC+3D CAM |
| Drive system | Servo driver |
| Collect type | ER25 |
| Spindle speed | 18000r/min |
| Panel length | 200~2800mm |
| Panel width | 50~1220mm |
| Panel thickness | 10~60mm |
| Empty moving speed(X/U/Y/Z) | 120/120/75/30m/min |
| Total power | 25KW |
| Spindle power | 3.5KW×2 |
| Spindle speed | 18000r/min |
| UP Horizontal drill | X:2×4 Y:2×2 |
| UP Vertical drill | 12 |
| Bottom Vertical drill | 9 |
| Drilling speed | 4000r/min |
| Working pressure: | 0.6-0.8MPA |
| Voltage | 380V/50HZ 3phase |
| Dimension(L*W*H) | 5800*2700*2400mm |
| Weight (KG): | 2000kgs |
| Fixed position: | Auto |
| Side leaning: | Auto |
| Working table | Air Floating table |
