| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZHONGCHI MACHINERY |
| Certification: | CE,ISO9001,SSL |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Delivery Time: | 5-7 day |
| Payment Terms: | T/T etc. |
| Supply Ability: | 2000pieces/Year |
| Product Name: | ZC668JK Edge Banding Machine | Thickness Of The Wood: | 10-60mm |
|---|---|---|---|
| Edge Band Thickness: | 0.4-3mm | Feeding Speed: | 18-24mm/min |
| Min Width Of The Wood: | ≥60mm | Min Length Of The Wood: | ≥160mm |
| Total Power: | 22KW | ||
| High Light: | Two Glue Edge Banding Machine,Wood Edge Bander Machine,22KW Wood CNC Machine |
||

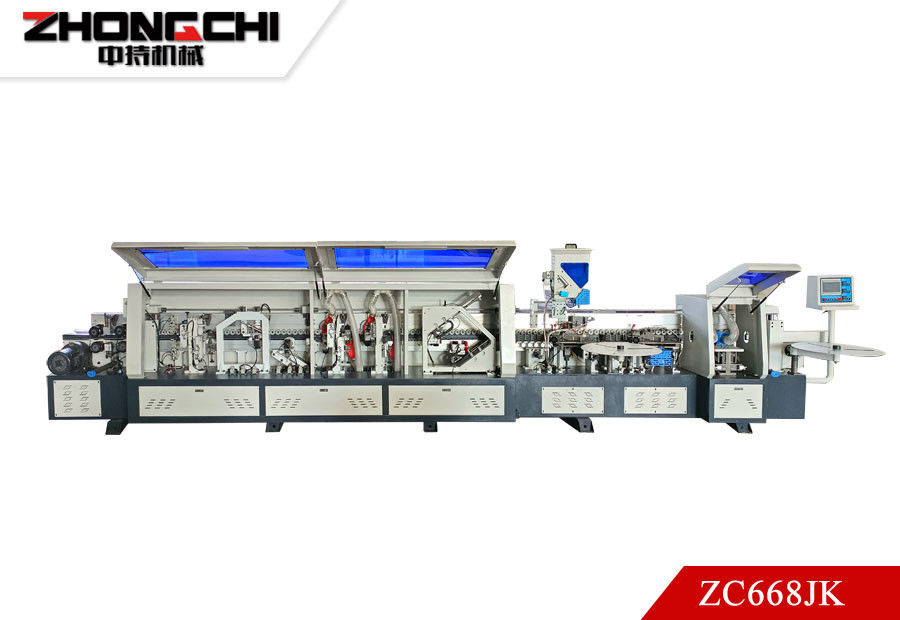

ZC668JK Edge Banding Machine
Zhongchi Wood Edge Banding Machine is a professional wood edging machine developed for woodworking, furniture manufacturing and other professional applications. It is well-known for its reliable performance and high quality construction. The machine is certified by CE and carries a net weight of 400KG. It supports panel thickness ranging from 10 to 60mm and edge banding thickness from 0.4 to 3mm. It is designed to work with 220V voltage and has an unlimited panel length. It can help to increase the efficiency and accuracy of wood edging, providing a better and more reliable result. It is a great choice for professional woodworking and furniture manufacturing.
| Parameter | Value |
|---|---|
| Thickness of the wood | 10-60mm |
| Edge band thickness | 0.4-3mm |
| Min width of the wood | ≥60mm |
| Min length of the wood | ≥160mm |
| Feeding speed | 18-24mm/min |
| Feeding Motor | 5.5KW |
| Total power | 22KW |
| Voltage | 380V /50Hz 3 Phase |
| Air pressure | 0.6Mpa |
| The glue temprture | 180-200 degree |
| Overall size | 8900*1000*1600mm |
| Weight | 2700kg |
