| Brand Name: | ZHONGCHI MACHINERY |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |

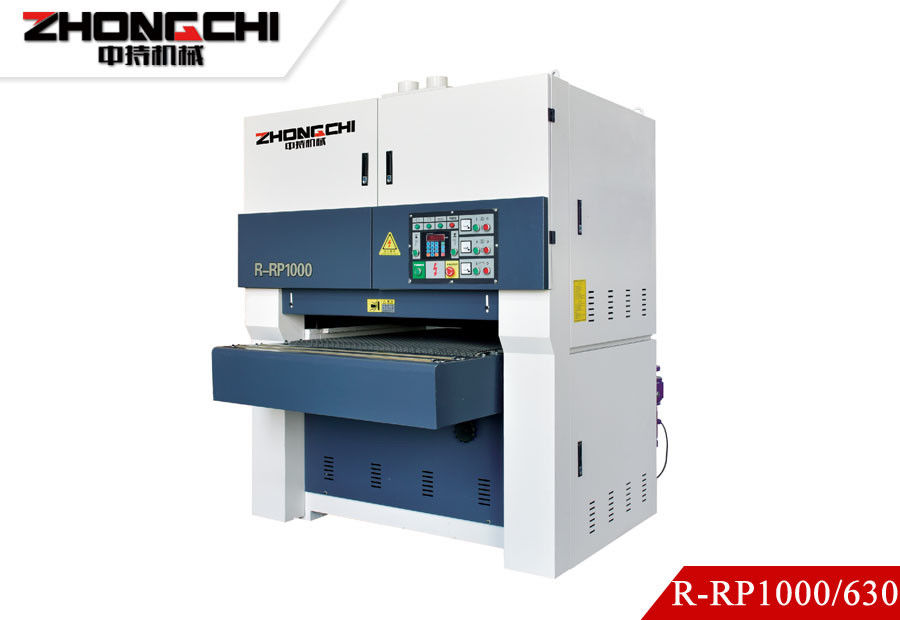

R-RP1000/R-RP630 Wide belt sanding machine
Product description:
It is mainly used for sanding and fine sanding of wood door, floor furniture and other work pieces
Reasonable structure, small deformation, good shock absorption effect
With fault display function, easy maintenance,in case of failure, equipment power failure, brake, transmission bed produced protection drop, can protect the workpiece from being damaged.
The swing and thickness of the belt can effectively ensure the anti-interference ability of the machine
Technical Parameters
| Max. processing width | 1000mm | 630mm |
| Min.working length | 350mm | 350mm |
| Working thickness | 2~200mm | 2~200mm |
| Total motor power | 27.87kw | 20.37kw |
| First sand rack power | 15kw | 11kw |
| Second sand rack power | 11kw | 7.5kw |
| Feeding speed | 5~25m/min | 5~25m/min |
| Belt size | 1020*2000mm | 650*1930mm |
| Working air pressure | 0.6~0.8Mpa | 0.6~0.8Mpa |
| Volume of dust collection device | 25m/S | 25m/S |
| Overall size | 1700 x 1400 x 2050mm | 1700 x 1100 x 2050mm |
| Weight | 2000kg | 1000kg |
|
| Brand Name: | ZHONGCHI MACHINERY |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |
R-RP1000/R-RP630 Wide belt sanding machine
Product description:
It is mainly used for sanding and fine sanding of wood door, floor furniture and other work pieces
Reasonable structure, small deformation, good shock absorption effect
With fault display function, easy maintenance,in case of failure, equipment power failure, brake, transmission bed produced protection drop, can protect the workpiece from being damaged.
The swing and thickness of the belt can effectively ensure the anti-interference ability of the machine
Technical Parameters
| Max. processing width | 1000mm | 630mm |
| Min.working length | 350mm | 350mm |
| Working thickness | 2~200mm | 2~200mm |
| Total motor power | 27.87kw | 20.37kw |
| First sand rack power | 15kw | 11kw |
| Second sand rack power | 11kw | 7.5kw |
| Feeding speed | 5~25m/min | 5~25m/min |
| Belt size | 1020*2000mm | 650*1930mm |
| Working air pressure | 0.6~0.8Mpa | 0.6~0.8Mpa |
| Volume of dust collection device | 25m/S | 25m/S |
| Overall size | 1700 x 1400 x 2050mm | 1700 x 1100 x 2050mm |
| Weight | 2000kg | 1000kg |
