| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZHONGCHI MACHINERY |
| Certification: | CE,ISO9001,SSL |
| Model Number: | MZ73211B |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Delivery Time: | 5-7 day |
| Payment Terms: | T/T etc. |
| Supply Ability: | 2000pieces/Year |
| Dimension: | 1100*1000*1500mm | Drilling Depth: | 50mm |
|---|---|---|---|
| Drilling Diameter: | 3-20mm | Name: | CNC Wood Drilling Machine |
| Positioning Accuracy: | 0.05mm | Power Consumption: | 2.2KW |
| Power Supply: | 220V/50Hz | Repeatability Accuracy: | 0.03mm |
| Spindle Speed: | 0-3000r/min | Weight: | 400Kg |
| Working Air Pressure: | 0.5-0.8Mpa | Working Table Size: | 600*400mm |
| X-axis Travel: | 400mm | Y-axis Travel: | 300mm |
| Z-axis Travel: | 50mm | ||
| High Light: | Single Row Woodworking Drilling Machine,MZ73211B Woodworking Drilling Machine,Multi Spindle Wood Boring Machine SSL |
||

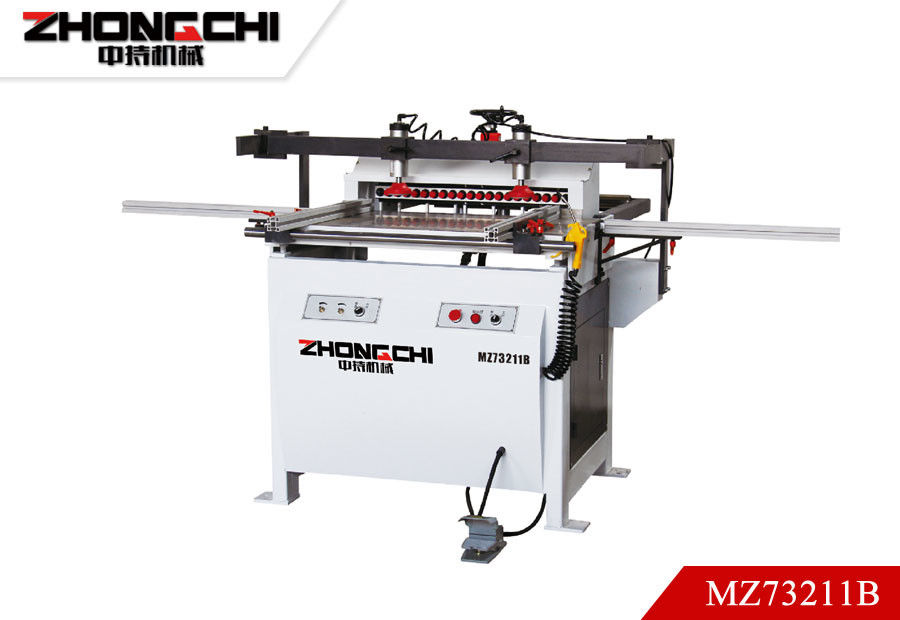

MZ73211B Single row multi-spindle woodworking drilling machine
For woodworking professionals and hobbyists alike, the Zhongchi CNC Wood Drilling Machine is the ideal choice for precise and accurate drilling. This China-made machine is certified with the CE certification and is equipped with multi-axis drilling, high drilling speed, automatic feeding, and a high-power motor for superior performance. With its high-end features, users can enjoy improved efficiency and accuracy when it comes to their woodworking projects.
With the Zhongchi CNC Wood Drilling Machine, users can easily drill through hardwoods and softwoods, as well as other materials with greater precision and control. The machine's high-speed motor allows for fast and efficient drilling, ideal for larger projects that require speed and accuracy. Additionally, its automatic feeding feature makes sure that the machine is always running smoothly and accurately.
The Zhongchi CNC Wood Drilling Machine is perfect for those looking to make the most of their woodworking projects. With its precision and accuracy, users can create beautiful pieces of furniture, decorations, and art with ease. Whether you're a professional or a hobbyist, this machine is sure to help you bring your woodworking dreams to life.
Technical Parameters
| Max.Drilling Diameter | φ35mm |
| Max.Drilling Depth | 60mm |
| Total Number of Drilling Shafts | 21 |
| Spindle Speed | 2800r/min |
| Total Power of Motor | 15kW |
| Air Pressure | 0.6-0.8Mpa |
|
Installation Size |
2000x1300x1300mm |
| Weight | 550kg |
