| Brand Name: | ZHONGCHI MACHINERY |
| Model Number: | MJ6132TC |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |

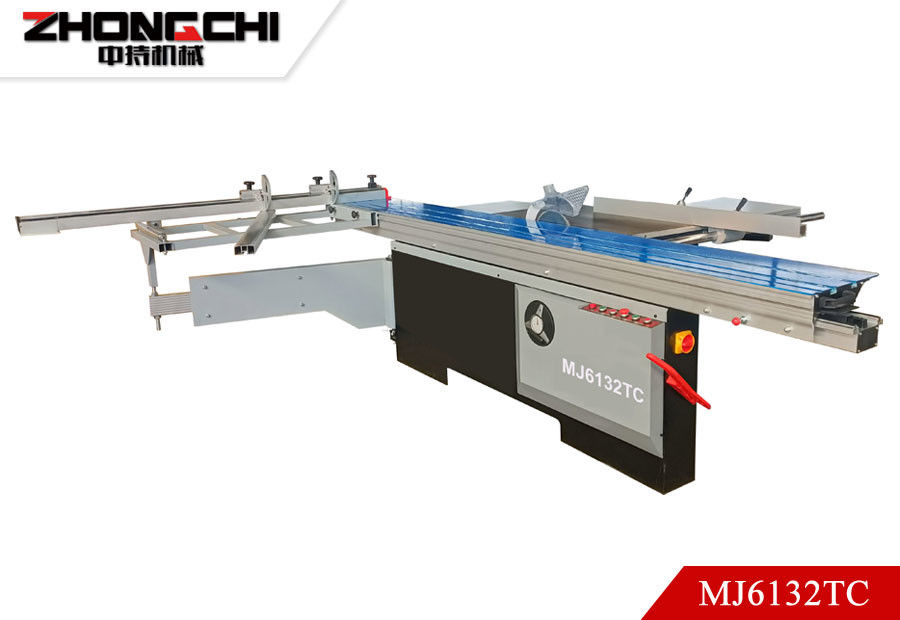

MJ6132TC Sliding Table Saw
The Woodworking Sliding Table Saw from zhongchi is a multifunctional sliding table saw that is certified by CE. It is designed for woodworking projects and offers a 0°-45° table tilt and dimensions sliding table of 2800/3000/3200*375mm. The table height is 850mm and the blade diameter is 255mm. It also features a dust collection port for added convenience and safety. The Woodworking Sliding Table Saw is made in China, making it an ideal choice for woodworking projects.
|
Dimensions slidingtable |
3200*375mm |
|
Maximumcuttingpanel length |
3200mm |
|
Maximum cutting panel thickness |
75mm |
|
Tilting angle sawblade |
0-45°mm |
|
Sawblade diameter |
Ø300mm |
|
Scoring saw blade diameter |
Ø120mm |
|
Speed of main sawblade |
4500/6000rpm |
|
Speed of scoring sawblade |
6000/8000rpm |
|
Spindlediameter |
Ø30mm |
|
Spindle ofscorina sawdiameter |
Ø20mm |
|
Main motor power |
4.0Kw |
|
Scoringpower |
0.75Kw |
|
Weight |
700kg |
|
Voltage |
380v/50hz 3phase |
|
Bodypackingsize |
2150*1100*1100mm |
|
Tablepackingsize |
3250*500*400mm |
|
|
