Place of Origin: | CHINA |
---|---|
Brand Name: | ZHONGCHI MACHINERY |
Certification: | CE,ISO9001,SSL |
Model Number: | ZC-450B2 |
Minimum Order Quantity: | 1 piece |
Price: | Negotiable |
Packaging Details: | Stretch Film or Wooden Packaging |
Delivery Time: | 5-7 day |
Payment Terms: | T/T etc. |
Supply Ability: | 2000pieces/Year |
Product Name: | ZC-450B2 Automatic Edge Banding Machine | Working Thickness: | 10-60mm |
---|---|---|---|
Feeding Speed: | 18-24m/min | Tape Thickness: | 0.4-3mm |
Total Power: | 10.4KW | ||
High Light: | ZC-450B2 Wood Edge Banding Machine,Edge Banding Machine Automatic ZC-450B2,Wood Edge Banding Machine 24m/Min |

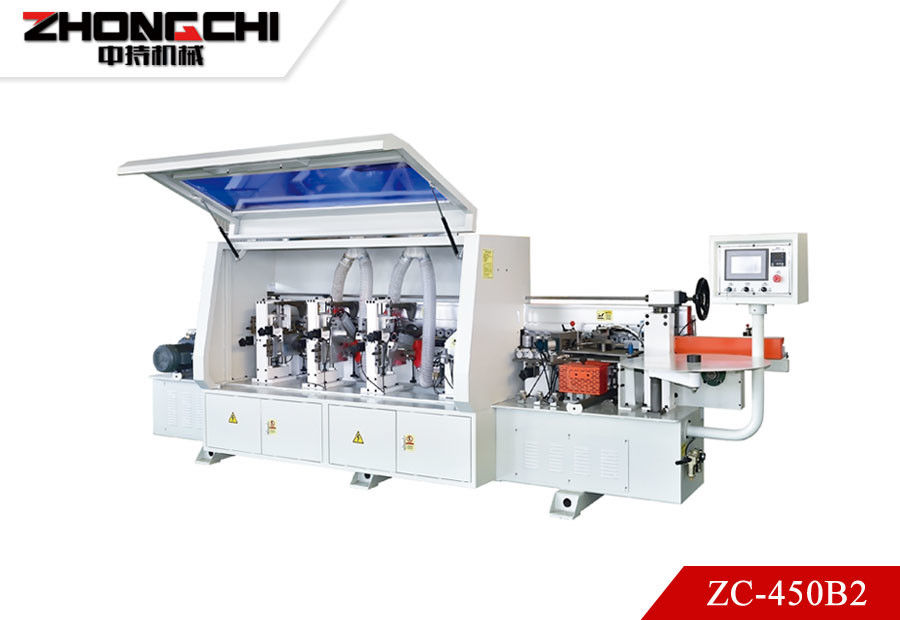

ZC-450B2 Automatic edge banding machine
Suitable for processing all kinds of MDF, particleboard, wood-based panels ASB panels, PVC panels, plexiglass panels, etc
Applicable products: solid wood panels, fibreboard, particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester,
melamine and wood, and so on.
Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.
Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that
each processing department can work fine. Processing components imported motor and high-quality electrical components.
Technical Parameters
Working thickness | 10-60mm |
Min. working width | ≥60mm |
Min. panel length | ≥160mm |
Feeding speed | 18-24m/min |
Tape thickness | 0.4-3mm |
Air pressure | 0.6Mpa |
Total power | 10.4KW |
Voltage | 380v,50hz, 3phase |
Weight | 1500kg |
Overall size | 4500*1100*1600mm |
