| Brand Name: | ZHONGCHI MACHINERY |
| Model Number: | MJ3928X400 |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |
Woodworking band saw machine horizontal band saw
Woodworking band saw machine
Horizontal band saw
Parameter:
| Model | 300mm | 400mm | 650mm |
| Max assembling size(mm) | 300*300 | 400*300 | 650*300 |
| The distance of blade to the workbench (mm) |
3-200 | 3-200 | 3-200 |
| Conveyor width(mm) | 285 | 385 | 650 |
| Saw wheel dia(mm) | 711 | 711 | 711 |
| Feed speed(m/min) | 0-18 | 0-18 | 0-18 |
| Saw wheel lifting motor(kw) | 0.37 | 0.37 | 0.37 |
| Saw wheel motor(kw) | 15 | 18.5 | 22 |
| The hydraulic pressure(kg/cm³) | 55 | 55 | 55 |
| Dust tube diameter(mm) | 102*2 | 102*2 | 102*2 |
| Saw blade size (L*W*T)mm |
4572*27*0.7 (1’saw wheel) (1.3’saw wheel) |
4572*27*0.7 (1’saw wheel) (1.3’saw wheel) |
4572*27*0.7 (1’saw wheel) (1.3’saw wheel) |
| Saw the road(mm) | 1.2-2.2 | 1.2-2.2 | 1.2-2.2 |
| dimensions(mm) | 2700*2100*1900 | 2700*2300*1900 | 2700*2300*1900 |
| Net weight(kg) | 1800 | 2000 | 2300 |
Our Horizontal Band Saw Machine is a multi blade saw that is reliable and efficient. It has a hydraulic pressure of 55kg/cm, a saw wheel lifting motor of 0.18kw, and a feed speed of 0-18m/min. It also has a maximum assembling size of 400x300mm and a saw wheel motor of 18.5kw. It is a strong and robust machine that can handle heavy duty jobs with ease. The saw is designed for precise cuts and can be adjusted to accommodate different material thicknesses. It is easy to use and maintain, with a low noise level and minimal vibrations. This Horizontal Band Saw is an essential tool for any workshop or factory.

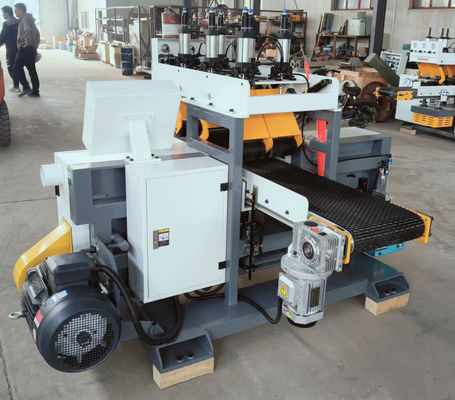

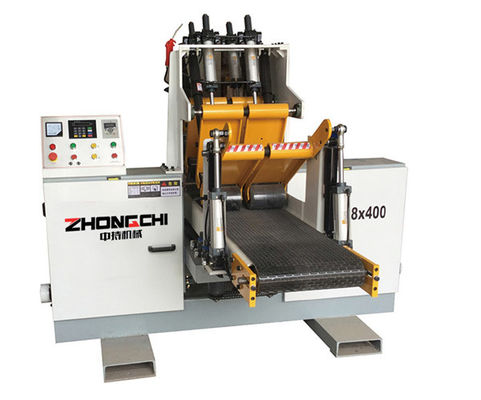

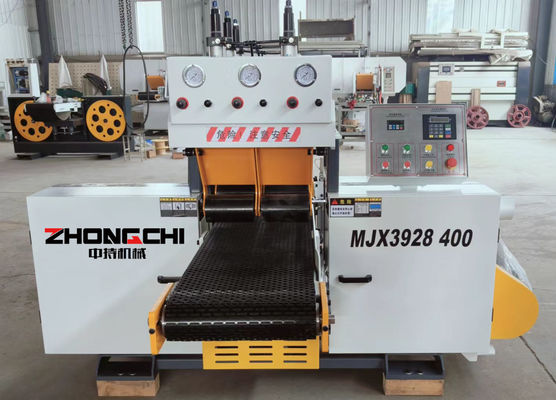

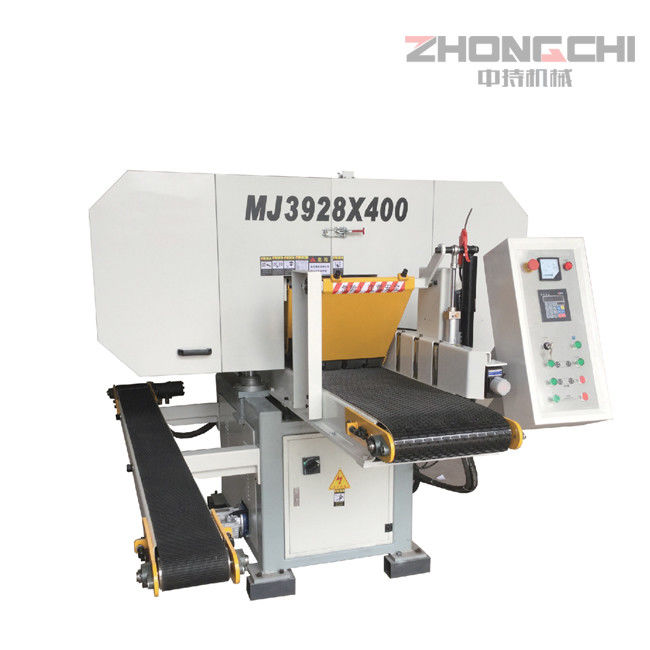

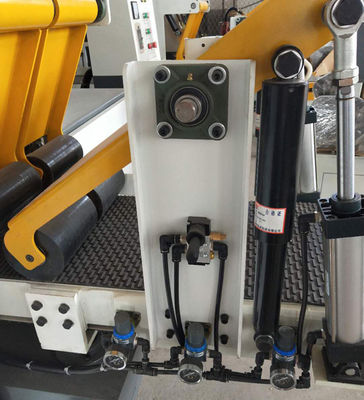

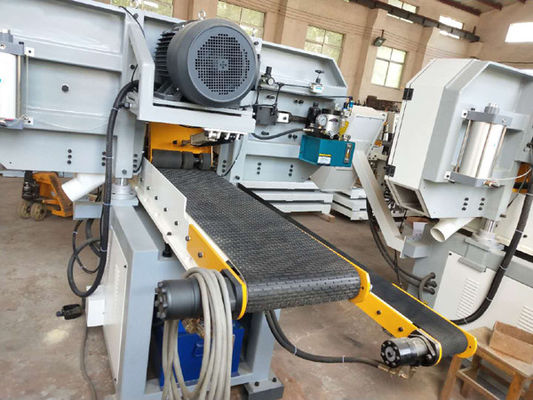

Detail Pictures
|
|
|
|
|
|
Packing and Shipping

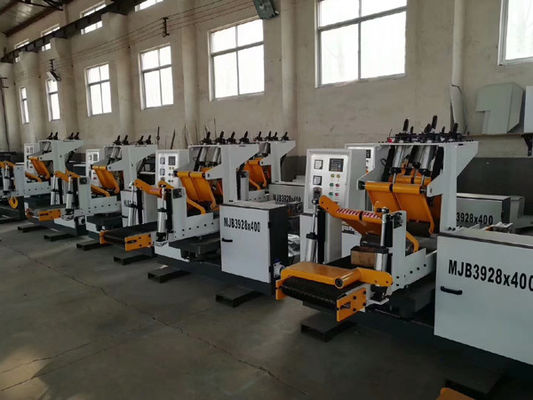

Certificate and Workshop
Payment Options
|
|
