| Brand Name: | ZHONGCHI MACHINERY |
| Model Number: | ZC2500A-2 |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |

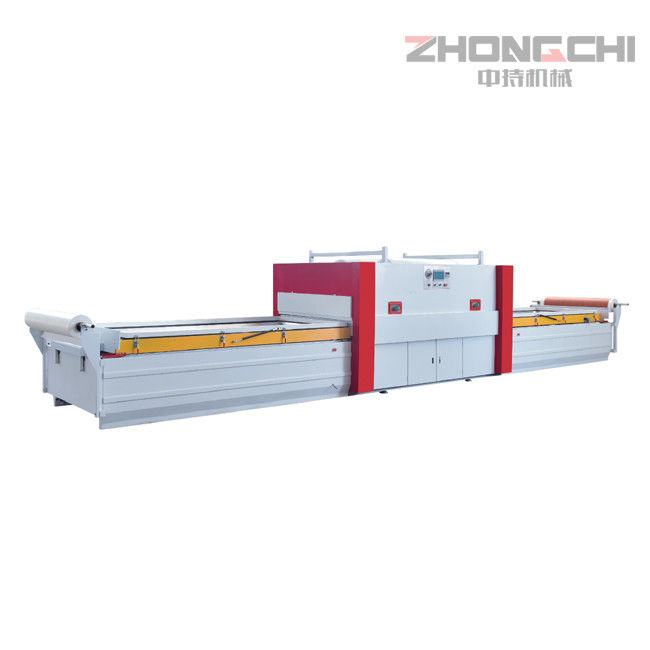

Pvc vacuum membrane press woodworking machine
Direction for use
1) Control part: The equipment adopts 7-inch touch screen and plc control, friendly interface,
intuitive and easy to operate, with memory function, can store a variety of process data, and
improve work efficiency.
(2) Electrical components: use Chint brand, national standard pure copper high temperature
wire. Stable performance and highdurability.
(3) Heating and heat preservation: stainless steel quartz heating tube, high-density aluminum
row heat dissipation, heating at the bottom of the working plate, heating up and down, auxiliary
heating around, heating more quickly and evenly. Thick rock wool, good heat preservation,
energy saving and electricity saving.
(4) Vacuum part: The vacuum pump is 100 pumps directly connected with German technology
and high quality, and the extended double gas storage tank (1900mm*450mm) has larger
air storage capacity. The advantages are large suction and good shape.
(5) Walking system: rack and pulley drive, reliable, never derail, and improve the yield.
(6) Personalized configuration: The workbench is equipped with inflation function to prevent the
film from folding. Two dust blowing guns are provided as standard, which is convenient for r
emoving dust on the door panel.
Parameter:
| Max．working height | 60mm |
| Ultimate vacuum | ≤-0.095mpa |
| Total power | 25kw |
| Voltage | 380V/50hz 3Phase |
| mesa dimension | 1100*2500mm/ 1300*2500mm/1300*3000mm |
| weight | 1800KG |
| overall size | 10500*1800*1600mm |
Detail Pictures
| |
| |
| |
Packing and Shipping
Certificate and Workshop
Payment Options
|
|
