| Brand Name: | ZHONGCHI MACHINERY |
| Model Number: | SR-RP1000 |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Stretch Film or Wooden Packaging |
| Payment Terms: | T/T etc. |
Woodworking sanding machine wide belt sanding machine SR-RP1000
Wide Belt Sanding Machine is a single phase wide belt sander for woodworking, with a belt size of 1320*2200mm, sanding belt speed of 20-40m/s, electric power supply and one-way sanding belt direction. It has a total motor power of 57kw, making it a powerful and efficient tool for sanding a variety of woods. The wide belt sander is designed for both professional and home use, giving users the ability to quickly and accurately sand a wide variety of woods with precision and accuracy. It is easy to operate, with adjustable speed and sanding pressure, and has a long-life belt that is easy to change when needed. The wide belt sander is perfect for producing a smooth and even finish on a variety of materials including hardwoods, softwoods, plywood, and particleboard.
Wide belt sanding machine
Sanding Machine
Parameter:
| Max. processing width | 1000mm | 630mm |
| Min.working length | 350mm | 350mm |
| Working thickness | 2~200mm | 2~200mm |
| Total motor power | 27.87kw | 20.37kw |
| First sand rack power | 15kw | 11kw |
| Second sand rack power | 11kw | 7.5kw |
| Feeding speed | 5~25m/min | 5~25m/min |
| Belt size | 1020*2000mm | 650*1930mm |
| Working air pressure | 0.6~0.8Mpa | 0.6~0.8Mpa |
| Volume of dust collection device | 25m/S | 25m/S |
| Overall size | 1700 x 1400 x 2050mm | 1700 x 1100 x 2050mm |
| Weight | 2000kg | 1000kg |

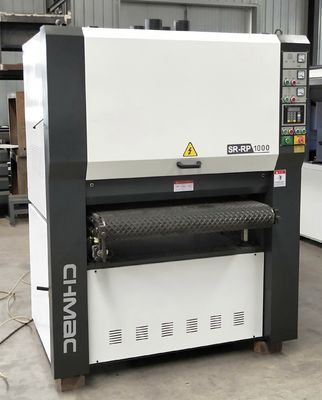

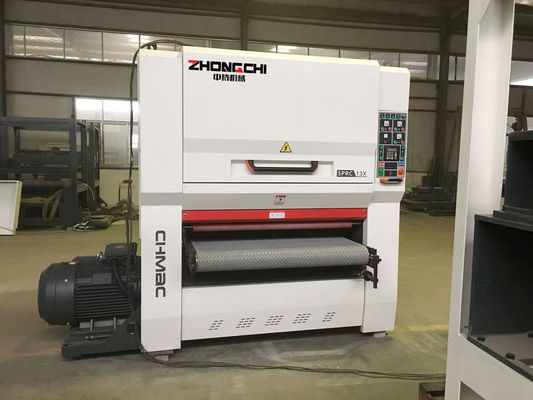

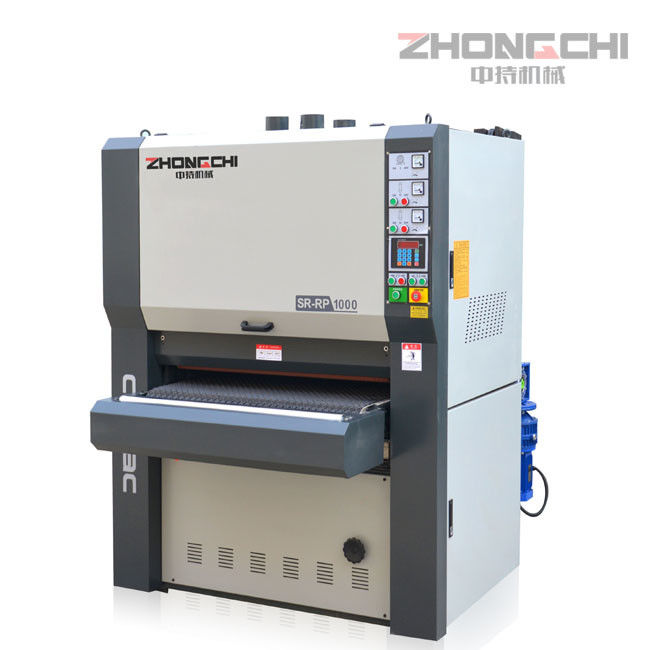

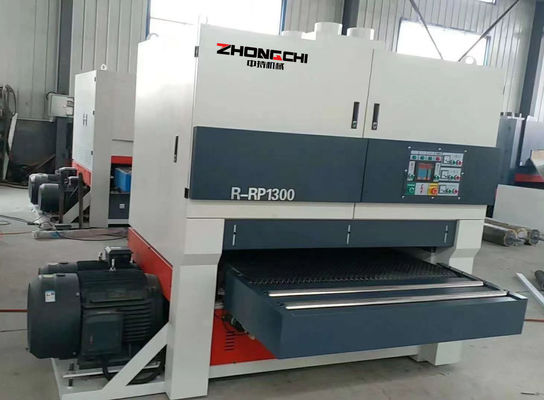

Detail Pictures
|
|
|
|
|
|
Direction for use
1.It is mainly used for sanding and fine sanding of wood door, floor furniture
and other work pieces
2.Reasonable structure, small deformation, good shock absorption effect
3.With fault display function, easy maintenance,in case of failure, equipment
power failure, brake, transmission bed produced protection drop, can
protect the workpiece from being damaged.
4.The swing and thickness of the belt can effectively ensure the
anti-interference ability of the machine
Packing and Shipping
Certificate and Workshop
|
